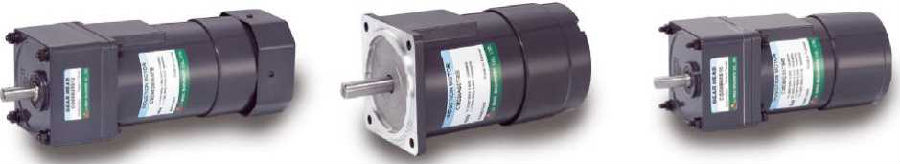

电磁剎车马达Electromagnetic Brake Motor
特征:适用于单相或三相马达紧急剎车作业。在电源断电的时侯,马达会瞬间停止并具有负载保持力。
Feature:Applicable to single-phase or 3-phase emergency brake.
When power if interrupted,motor will instantly stop and maintain the loading.
马达一般规格Motor General Specification
绝缘阻抗:在马达的线圈与外壳间以DC500V高阻计测定,其数值在100MΩ以上。
绝缘耐压:在马达的线圈与外壳间施加50Hz或60Hz、1.5KV、1分钟无发生异常现象。温度上升:于马达额定连转后以电阻法测定,温度上升值在80℃以下。
绝缘等级:B种(130℃)
保护等级:导线型IP20。
使用温度:-10℃~+50℃(电容连续运转马达-10℃~+40℃)(不结冻状态)。使用湿度:85%以下(不结露状态)。
强制风扇(选配):电压AC(110V,220V)提供马达强制性散热(送电状态下)。

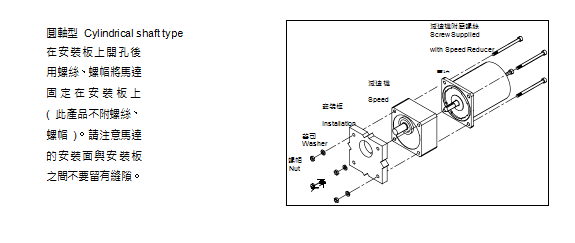

因马达出力轴的不同,安装亦有所不同。
Different installation methods result from different output shafts of motor.
